Integrated design of photovoltaic energy storage inverter;
Both grid-tied and off-grid function;
Lead-acid cell or lithium cell in optional;
Max. Efficiency 97.6%;
Dual MPPT tracking, MPPT efficiency >99.9%;
ZCT soft switch technology, low loss;
21 kinds of protection functions, safe and reliable;
Fanless design, noise<25dB;
IP65 protection level, and suitable for outdoor use;
Support RS485, WIFI, GPRS multiple communication code;
5 years warranty.

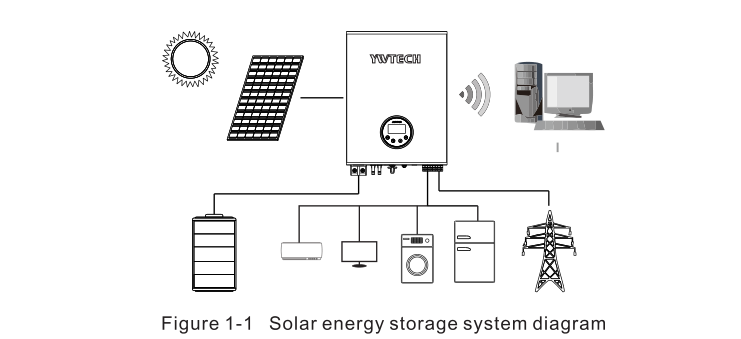

Scene Application
A. Spontaneous Mode
① When the sun is full during the day, the PV power generation is preferentially used to meet the load, and the excess battery is charged.
② After the battery is fully charged, the load is used, and the remaining electricity is fed back to the grid.
③ At dusk, PV poor, the battery and PV are output together to meet the load.
④ At night, when there is no PV, the battery output alone meets the load.
B. Economic Mode
① The sun is abundant during the day, all PV power generation is connected to the grid, the battery is not charged and discharged.
② At dusk, the using electricity peak period, the battery discharge meets the load demand, and the grid is used as a backup supplement.
③ During the night, use the electricity low price to supply charge the battery.
C. Seamless Off-grid Switching
When the grid voltage, frequency is abnormal or power failure occurs, the inverter automatically switches to off grid mode operation to ensure uninterrupted operation of important loads. The switching time is less than 5ms.
D. Zero Export Mode.
If there is regulations to limit the export power of a on-grid PV system, you could choose this mode to limit the export rate of your system’s output to the grid.
E. Work without battery at daytime.
The PV supply the power to the load directly, it can work without the battery, no need to buy the batteries in some countries, save more money.
