  • PV600 Series solar pump inverter

PV600 Series solar pump inverter

1 Phase 220V 0.75KW ~2.2kW
3 Phase 380V 0.75KW ~400kW

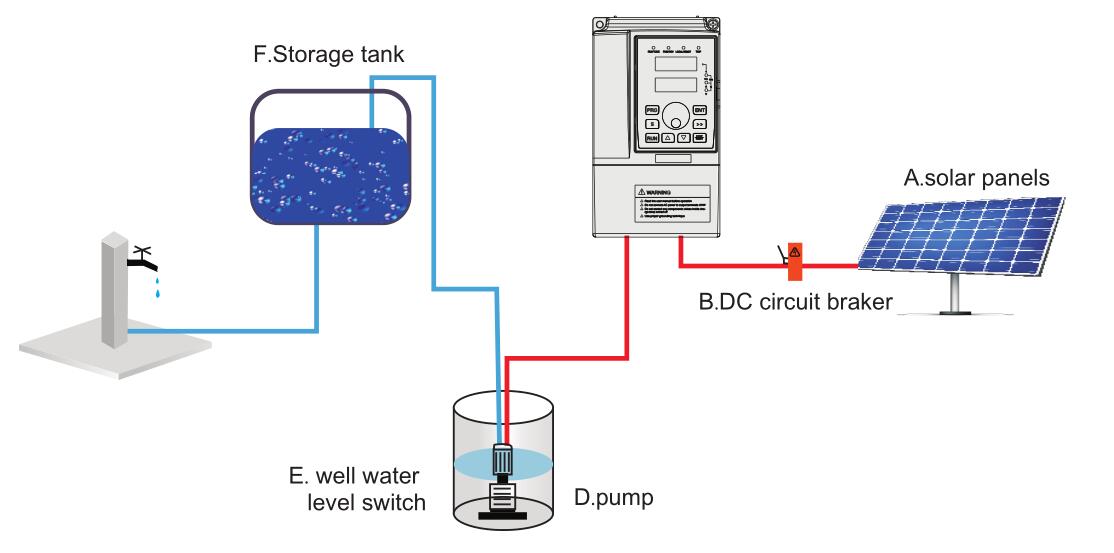

PV600 Series controller is a newly developed specialized for PV pump, it is mainly used for water supply in remote areas where without power supply or supply is unstable. PV pump controller can drive all kinds of water pumps by changing direct current which to be issued by PV module into alternating current. System continuously pump in good weather. For systems without batteries and other energy storage devices, it is recommended that the water should pump to the cistern for coming use.

  • Product features
  • Specification

Application:

agricultural and forestry irrigation,

Desert water supply,

drinking water,

sewage treatment,

scenic fountain and swimming pool, etc.

Product features

Advanced MPPT technology with up to 99% efficiency
Dormancy and Wake-up function:Inverter will entry dormancy mode and wake up automatically according to sunshine intensity.
Built-in protection:Support over-current, over-voltage, phase loss, short circuit, over-temperature and etc. protection.
Eco-friendly:No need battery, suitable for all kinds of applications
Suitable for all kinds of pumps, including single phase 220V pump
Support AC input, could switch to grid power supply to make system work 24 hours
Water level control:Dry run protection, tank water level control.
Self-adaptation to the motor’s power rating

High Cost-effectiveness
Plug-and-play system design, no need to set any parameter
Wide range of input voltage
Easy installation and effortless maintenance
