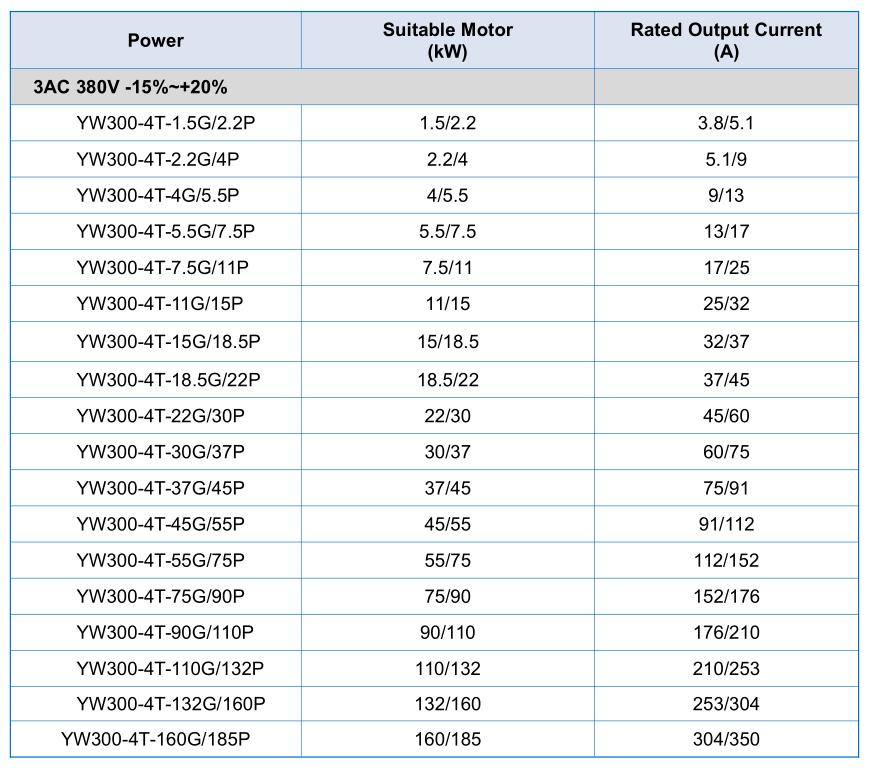

Power range: 0.7KW～500KW;
Various control methods: vectorized V/F control, sensorless vector control (SVC), sensory vector control (FVC);
Industry-leading loss control algorithm: optimized V/F control and sensorless vector control have better low-speed stability,
stronger low-frequency torque output, and better dynamic response;
Starting torque: G type: 0.5Hz/150 (SVC) 0.5Hz/180% (FVC)
P type: 0.5Hz/110%;
Speed adjustment range: 1: 100 (SVC) 1: 1000 (FVC);
Stable speed accuracy: ±0.5% (SVC) ±0.02%;
Overload capacity: G type 150% rated current 60S
P type 110% rated current 60S;
● Torque control: open-loop loss torque control Closed-loop loss torque control;
● V/F curve: linear, multi-point, power curve VF separation;
● Built-in PID: PID control of the process control system can be conveniently realized;
● With speed tracking start function: to identify the speed of the motor at high speed to achieve smooth and shock-free start;
● Simple PLC, multi-step speed: up to 16-step speed can be achieved through built-in PLC or control terminal;
● Automatic voltage adjustment (AVR): when the grid voltage changes during operation, it can automatically keep the voltage output constant;
● Over-voltage and over-current stall control: During the operation of the inverter, the output current and bus voltage are automatically limited to prevent frequent over-current and over-voltage trips;
● Multiple command sources: given by operation panel, given by control terminal, given by serial communication, why flexibly control the start and stop of inverter;
● Frequency source and auxiliary frequency source: digital setting, voltage setting, current setting and serial communication setting. The auxiliary frequency source can realize frequency synthesis and fine adjustment;
● Input and output terminals: all can be freely programmed, and can achieve a variety of control logic control;
● Multi-encoder support: support differential, open collector viewpoint encoder, resolver and other speed sensors;
● Multi-motor switching: The inverter can be built with two sets of independent motor parameters, and can also switch between two motors in vector control mode;
● Provide multiple fault protection functions: overvoltage protection, undervoltage protection, overcurrent protection, overload protection, overheat protection, motor overload protection, phase loss protection, etc.
